Aluminum Letter Bending Machine
Automatic aluminum letter bending solutions designed for precise channel letter production.
Professional Aluminum Letter Bending Solution
The NL-130 / NL-180 Aluminum Letter Bending Machine is developed for efficient aluminum letter fabrication. Combining automatic feeding, slotting, and bending into one integrated system, the machine delivers stable processing while maintaining excellent bending accuracy.
Built for advertising and signage manufacturers, the machine features intelligent software control, automatic cutting depth adjustment, and precision bending technology for producing high-quality aluminum letters with consistent results.
Features
| Feature | Description |
|---|---|
| Five-Axis Mechanical Construction | Integrated feeding, lifting, cutting, and bending ensure accurate and stable processing in one operation. |
| Closed Loop Control System | The self-test control system maintains high measuring precision with deviation less than 0.1mm. |
| Brushless DC Cutting Motor | Adjustable cutting speed supports different aluminum materials while maintaining stable operation. |
| Intelligent Angle Compensation | Automatically compensates rebound coefficients to improve forming accuracy for different materials. |
| Imported Side Rails | Precision positioning rails improve cutting stability and machining accuracy. |
| Automatic Cutting Depth Adjustment | The motor automatically adjusts cutting depth through software for easier operation. |

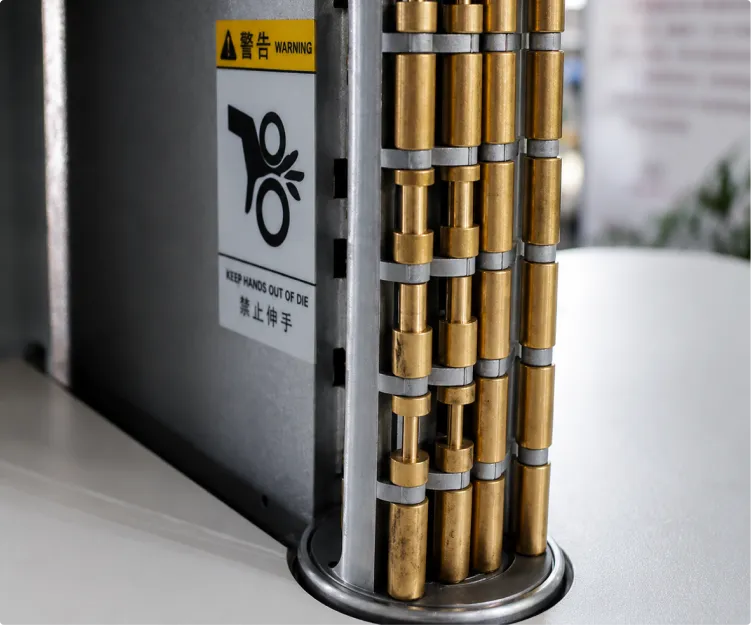

| Rolling Feeding Mechanism | Smooth feeding reduces material wear while improving production efficiency. |
| One-Button Operation | Start, feeding, and material return functions are completed with a single button for convenient operation. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | NL-130 / NL-180 |
| Working Principle | Auto Feeding, Auto Slotting, Auto Bending |
| Material Width | ≤130 mm / 160 mm / 180 mm |
| Material Thickness | 0.3–1.2 mm |
| Slot Degree | 60°–120° (No limit for flat materials) |
| Minimum Bending Radius | ≥5 mm |
| Total Power | 1000 W |
| Voltage | 220 V |
| Machine Size | 2330 × 900 × 1450 mm |
| Machine Weight | 300 kg / 350 kg / 380 kg |

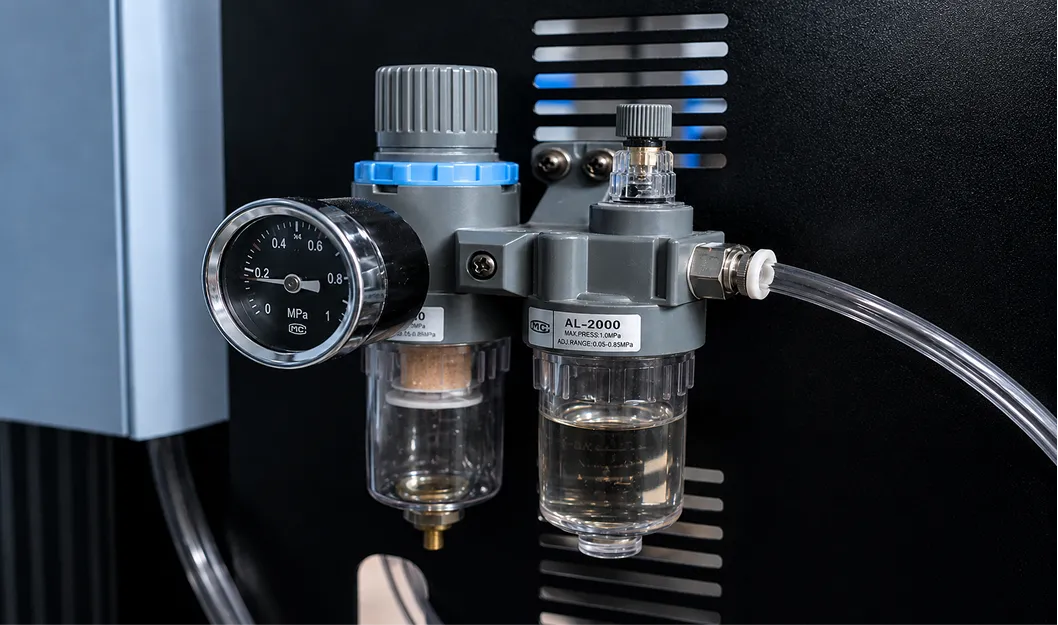

| Air Pressure | 0.4–0.8 MPa |
| File Format | DXF, PLT |
Training and installation:
Training Services
We can provide 3 ways:
The First Way
You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training.
The Second Way
Our engineer will do a door-to-door instruction training service at your local site, but buyer is responsible for our engineer’s round trip ticket, visa fee, hotel, food, training fee, etc.
The Third Way
We also can teach u how to operate and install by WhatsApp, video, email, etc.
Frequently Asked
Questions
Which materials can this machine process?
+
The machine is designed for aluminum profiles, flat aluminum, Channelume, and folding coil materials.
Which file formats are supported?
+
DXF and PLT file formats are supported.
Can the cutting depth be adjusted?
+
Yes. The cutting depth is automatically adjusted through the machine software.
What industries use this machine?
+
It is widely used for aluminum channel letters, LED letters, advertising signs, and signage manufacturing.
Does the machine include a computer?
+
No. The machine does not include a computer. A compatible computer with the required control card is needed for operation.
