Laser Welding Machine
Professional laser welding solutions for metal fabrication, channel letters, and signage manufacturing.
Precision Laser Welding for Professional Manufacturing
The 300W and 500W Laser Welding Machines are engineered to deliver accurate, clean, and reliable welding for a wide range of metal fabrication applications. Their advanced laser technology produces strong welds with minimal heat impact, helping improve product quality and production efficiency.
Designed for professional manufacturers, these machines combine stable performance with simple operation, making them suitable for both detailed welding tasks and continuous industrial production.
Features
| Feature | Description |
|---|---|
| High-Precision Welding | Produces clean, accurate welds with excellent consistency. |
| Stable Laser Output | Maintains reliable welding performance during continuous operation. |
| Efficient Production | High welding speed improves productivity while maintaining quality. |
| User-Friendly Operation | Easy controls simplify machine setup and daily operation. |
| Strong Weld Quality | Creates firm and durable weld joints for metal fabrication applications. |
| Reliable Cooling System | Designed to support stable machine performance during long working hours. |
| Compact Structure | Industrial design allows convenient installation and operation. |
| Low Maintenance | Quality components help reduce routine maintenance requirements. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Models | 300W / 500W |
| Machine Type | YAG Pulse Laser Welding Machine |
| Laser Power | 300W / 500W |
| Laser Wavelength | 1064 nm |
| Laser Type | YAG Pulse |
| Laser Route | Dual Path with 5M Handheld Gun or Single Path |
| Cooling Method | Water Chiller (300W: 1P / 500W: 2P) |
| Viewing System | CCD + Red Light |
| Working Table Size | 2150 × 2200 × 1700 mm |
| Working Voltage | 300W: 220V ±10%, 50Hz / 500W: 380V ±10%, 60Hz |
| Pulse Width | 300W: 0.1–10 ms / 500W: 0.1–20 ms |
| Laser Spot Size | 300W: 0.2–3.0 mm / 500W: 0.2–5.0 mm |
| Welding Frequency | 300W: 1–50 Hz / 500W: 1–60 Hz |
| Vertical Travel | >200 mm |
| Horizontal Travel | 200–800 mm |
| Maximum Power Consumption | 300W: <7.5 kW / 500W: <16 kW |

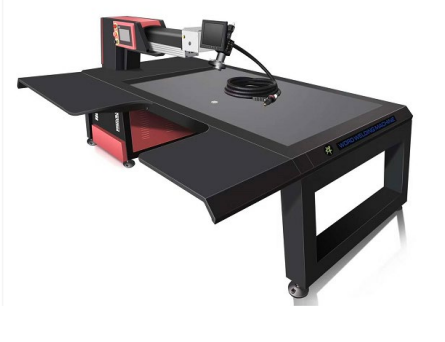

Laser Welding Machine
300W/500W Laser Welding Machine，with big table

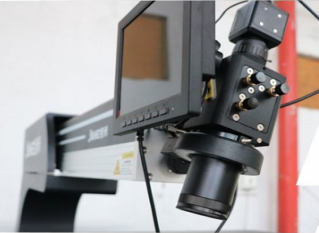

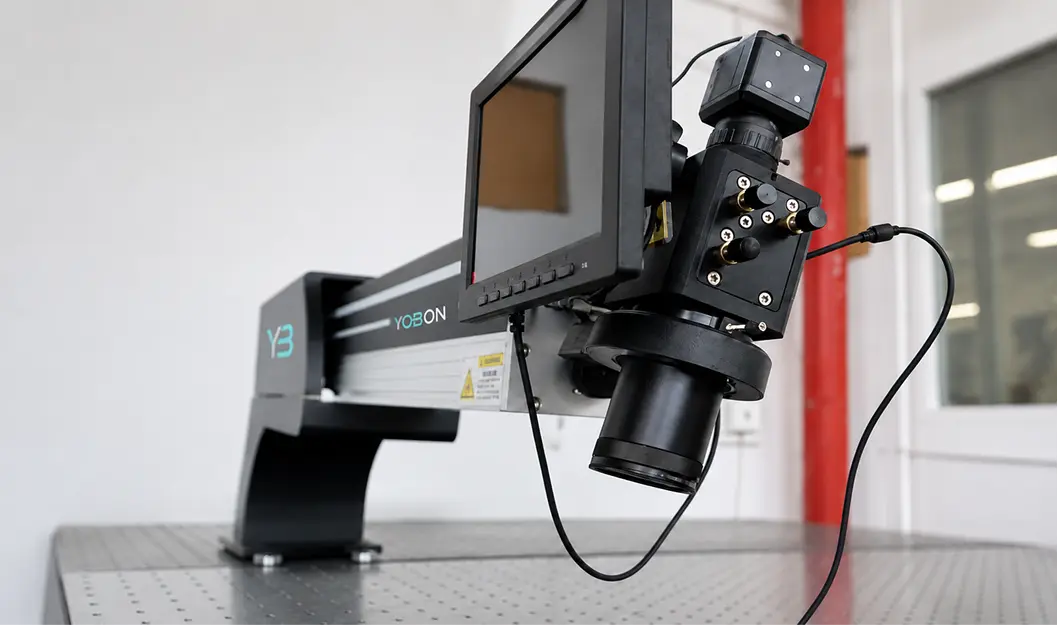

CCD Monitor
Adopt glossy double-coating mirror,the welding effect is clear and intuitional

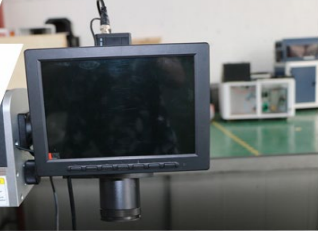

CCD Display
Reflect the welding details clearly,assuring the high welding accuracy and reducing the operator’s visual fatigue.

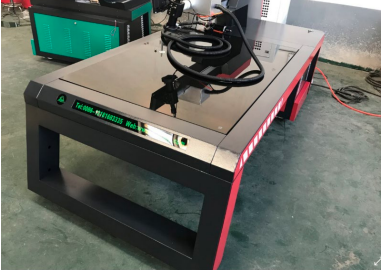

Working Table
Big Working Table with Extra
Swing board, very convenient
when making big letters

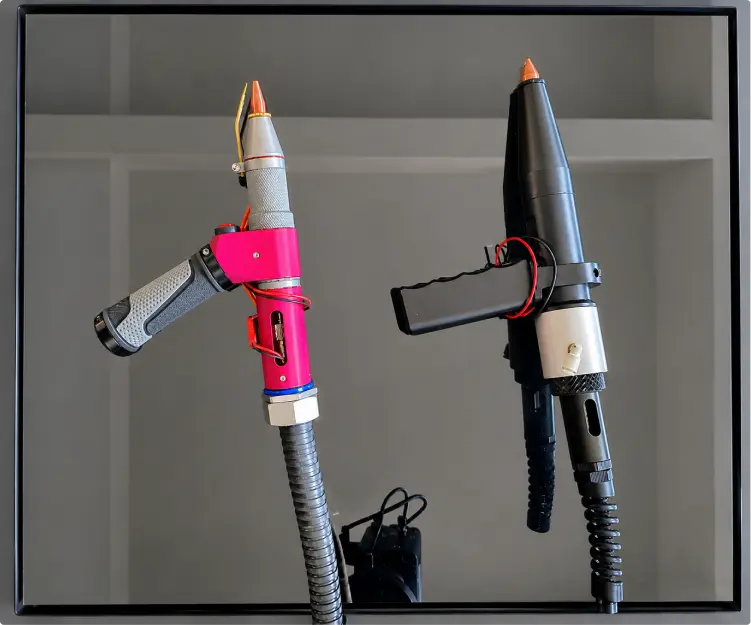

Handle with Gun
5M Handle Welder with Gun, When making big letters or small closed angle letters,
using the handle welder will be very easy. Good quality and very light, long time
working don’t feel tired.
Red Point focusing
300W laser welder
300W laser welder match with 1P Water Chiller,
500W laser welder match with 2P big water
chiller

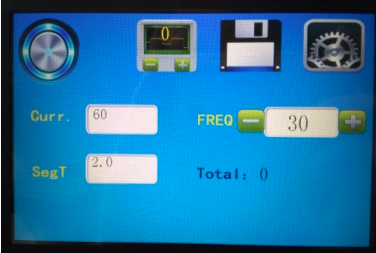

Controller System
The controller System is in
English, Very easy to operate.
Frequently Asked
Questions
Which materials can this machine weld?
+
The machine supports stainless steel, carbon steel, galvanized steel, iron, and aluminum (500W model).
What is the difference between the 300W and 500W models?
+
The 500W model provides higher welding power, greater welding depth, and supports aluminum welding, making it suitable for heavier industrial applications.
Is the machine suitable for continuous production?
+
Yes. The industrial water cooling system and stable YAG pulse laser are designed for continuous operation.
