High-Performance Multi-function Letter Bending Solution
The AL-160 / AL-200 Multi-function Letter Bending Machine is engineered to simplify channel letter production by integrating multiple processing functions into one intelligent system. With automatic feeding, straightening, cutting, and bending, the machine helps manufacturers achieve greater efficiency while maintaining consistent bending accuracy.
Designed for professional advertising and signage production, the machine supports a wide range of aluminum and metal materials. Its five-axis mechanical construction, precision cutting system, and intelligent software control make it suitable for both standard and complex letter fabrication projects.
Features
| Feature | Description |
|---|---|
| Independent Double Cutters | Dual cutter design with double slotting systems improves processing efficiency while maintaining cutting stability. |

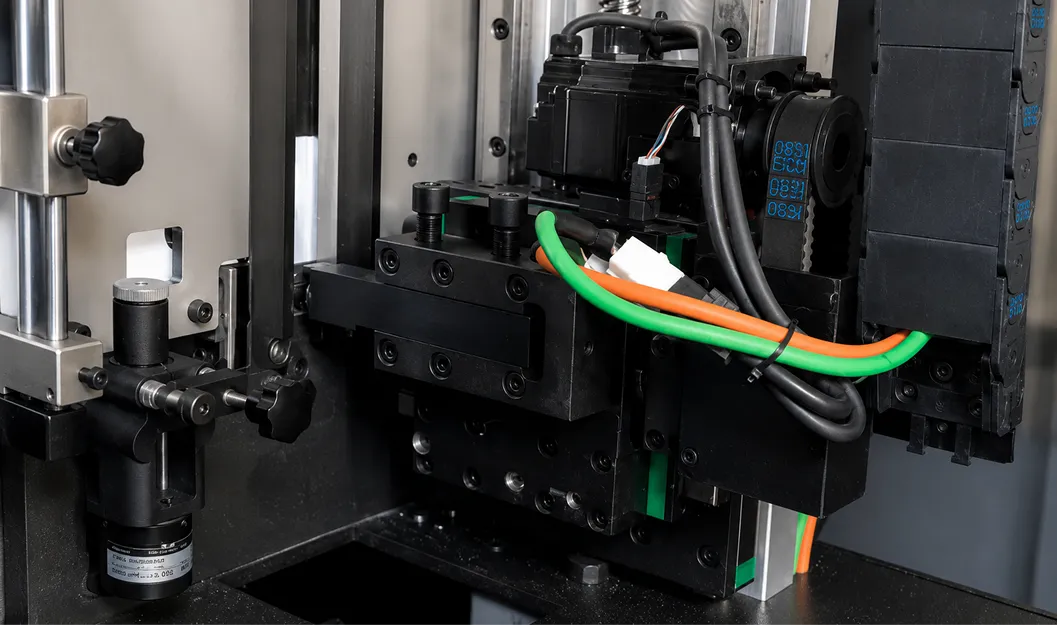

| Five-Axis Mechanical Construction | Integrated feeding, lifting, cutting, and bending ensure accurate and stable arc formation in a single process. |
| Brushless DC Cutting Motor | Adjustable cutting speed supports different materials while providing stable cutting performance. |
| Double Bender System | Freely switch between different benders without additional material testing, improving production flexibility. |
| Precision Milling Cutter | Automatically identifies cutting angles and processes different aluminum profiles with consistent accuracy. |
| Automatic Cutting Depth Adjustment | The software automatically controls cutting depth, reducing manual adjustments during production. |
| One-Button Operation | Material feeding, machine start, and return functions are completed with simple one-button control. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | AL-160 / AL-200 |
| Working Principle | High Accuracy Auto Feeding, Auto Straightening, Auto Cutting & Auto Bending |
| Material Width | ≤160 mm / ≤200 mm |
| Material Thickness | 0.3–1.2 mm |
| Minimum Bending Radius | ≥3 mm |
| Length Accuracy | 0.1 mm |
| Feeding Torque | >45 Nm |
| Arc Bending Torque Peak | >100 Nm |
| Planer Slotting Torque Peak | >100 Nm |
| Total Power | 2000 W |
| Voltage | 220 V |
| Air Pressure | 0.3–0.6 MPa |
| File Format | DXF, AI, PLT |
| Machine Size | 2050 × 800 × 1750 mm |
| Machine Weight | 620 kg / 650 kg |
Advantages
Stable Cutting & Bending
With five-axis mechanical construction-feeding, lifting, cutting, and bending once forming, to ensure accurate and stable arc.
Brushless DC Cutting Motor
With brushless DC Cutting motor, adjustable speed, application of various materials.
High Measuring Precision
With the closed loop self-test system, the device features high measuring precision in the long run. The whole error is less than 0.1mm comparing with the acrylic panel.
Imported Side Rails Positioning
Imported side rails positioning cutting, to ensure the cutting stability.
Intelligent Compensation System
Curved arc is rebound coefficient intelligent compensation to ensure the accuracy of various material.
Frequently Asked
Questions
What materials can the machine process?
+
The machine supports stainless steel, galvanized steel, iron sheet, copper, flat aluminum, edge aluminum, Channelume, aluminum profiles, polymer coils, and other compatible materials.
Which file formats are supported?
+
The machine supports DXF, AI, and PLT file formats.
Is the cutting depth adjustable?
+
Yes. The cutting depth is automatically controlled through the machine software.
What industries use this machine?
+
It is widely used in advertising, signage manufacturing, LED letter production, and metal letter fabrication.
Does YOBON provide technical support?
+
Yes. Technical guidance, installation assistance, and training support are available.
