Metal Letter Bending Machine
High-speed automatic machines for professional metal letter bending and sign fabrication.
High-Speed Flat Metal Letter Bending Solution
The M-130, M-220, and M-300 Flat Metal Letter Bending Machines are developed for accurate and efficient flat metal letter production. With automatic feeding, straightening, cutting, punching, and bending functions, the machine helps improve production efficiency while maintaining consistent processing quality.
Designed for professional sign manufacturers, the M-Series supports a wide range of flat metal materials and combines intelligent software control with precision mechanical systems to simplify complex letter fabrication.
Features
| Feature | Description |
|---|---|

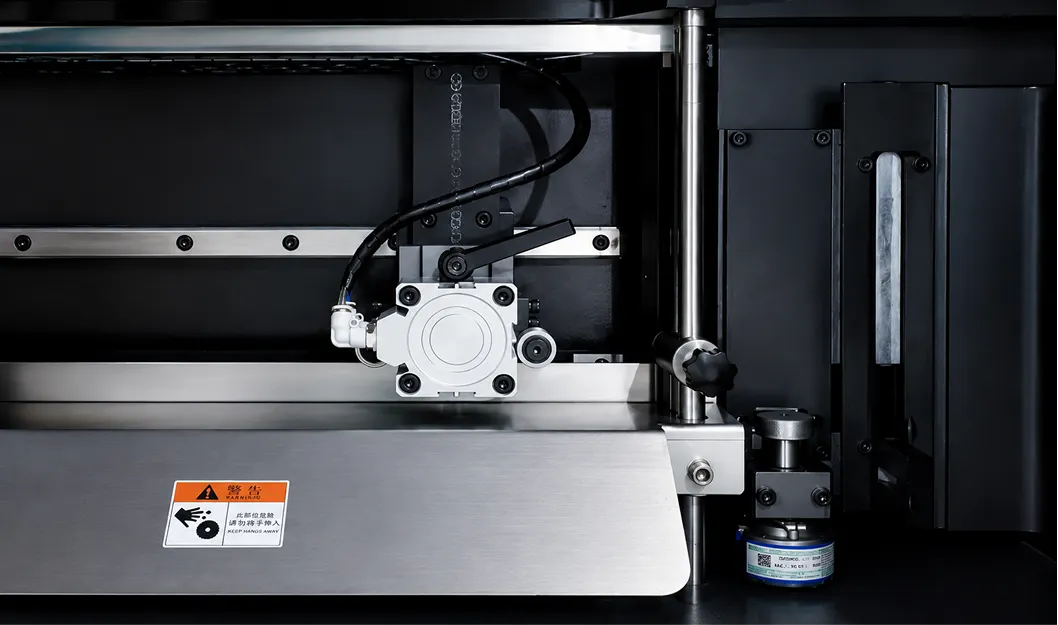

| Machinery Arm Feeding System | Alternate manipulator feeding improves material stability while reducing scratches during processing. |

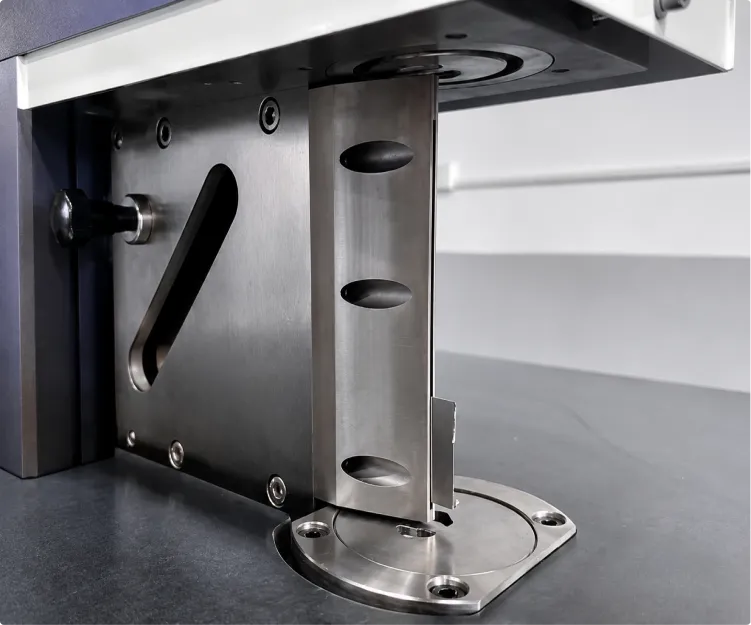

| Double-Blade Bending System | The alternate double-blade structure provides high forming accuracy and stable bending performance. |
| Automatic Slotting System | Servo-controlled planer cutter automatically adjusts cutting depth for simple and efficient operation. |
| Automatic Punching | Integrated punching system creates holes directly from the software without additional processing. |
| Closed-Loop Length Control | Software-controlled precision maintains length accuracy with an error of ≤0.1mm. |
| Hard Alloy Planer Blade | Maintenance-free planer blade provides stable cutting performance and lower operating costs. |
| Precision Processing | High-accuracy feeding and bending ensure consistent results throughout production. |
| Easy Software Integration | Supports DXF, AI, and PLT file formats for efficient production workflow. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Models | M-130 / M-220 / M-300 |
| Working Principle | Auto Feeding, Auto Straightening, Auto Cutting & Auto Bending |
| Feeding System | Machinery Arm Feeding System |
| Slotting System | Planer Cutter, Servo Motor |
| Bending System | Double-Blade Bending System |
| Punching System | Automatic Software-Controlled Punching |
| Length Accuracy | 0.2 mm/M |
| Minimum Bending Radius | ≥7 mm |
| Material Width | ≤130 mm / ≤220 mm / ≤300 mm |
| Material Thickness | 0.3–1.2 mm (M-130), 0.3–1.5 mm (M-220) |
| Total Power | 2000 W |
| Voltage | AC220V |
| Air Pressure | 0.4–0.8 MPa |
| File Format | DXF, AI, PLT |
| Machine Size | 2200 × 800 × 1600 mm |
| Machine Weight | 400 kg / 430 kg |
Training and installation:
Training Services
We can provide 3 ways:
The First Way
You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training.
The Second Way
Our engineer will do a door-to-door instruction training service at your local site. But buyer is responsible for our engineer’s round trip ticket, visa fee, hotel, food, training fee, etc.
The Third Way
We also can teach u how to operate and install by WhatsApp, video, email…
Frequently Asked
Questions
Which materials can the machine process?
+
The machine supports stainless steel, galvanized sheet, iron sheet, copper, flat aluminum, polymer coils, and punched hole coils.
What file formats are supported?
+
DXF, AI, and PLT file formats are supported.
Does the machine support automatic punching?
+
Yes. The machine features an automatic punching system controlled directly through the software.
What is the minimum bending radius?
+
The minimum bending radius is ≥7mm.
Is training available?
+
Yes. Training can be provided at the factory, on-site, or remotely through WhatsApp, video, or email.
